Product Introduction
Shear lock is an anti-offset device that is sleeved on the top of the helical pile. It consists of a collar tube and four steel wings, which are fixed on the helical pile by bolts. Shear lock can increase the horizontal resistance of the pile body to prevent the supporting building from tilting. When installing the shear lock, it must be fully embedded in surrounding soil. Don't exacavate soil surrounding pile head to install shear lock.
Product Parameter (Specification)
| Shear Lock |
| Item | Parameters |
| Casing | Φ95×8.98 mm |
| Limit baffle | 600×200×12 mm |
| Coating | Galvanized (G), Bare Steel (NG), Epoxy Powder Coated (EP) |
| Matching Helical Pile | Φ76、Φ88.9、Φ114.3、Φ140 |
| Axial Force | Customized on demand |

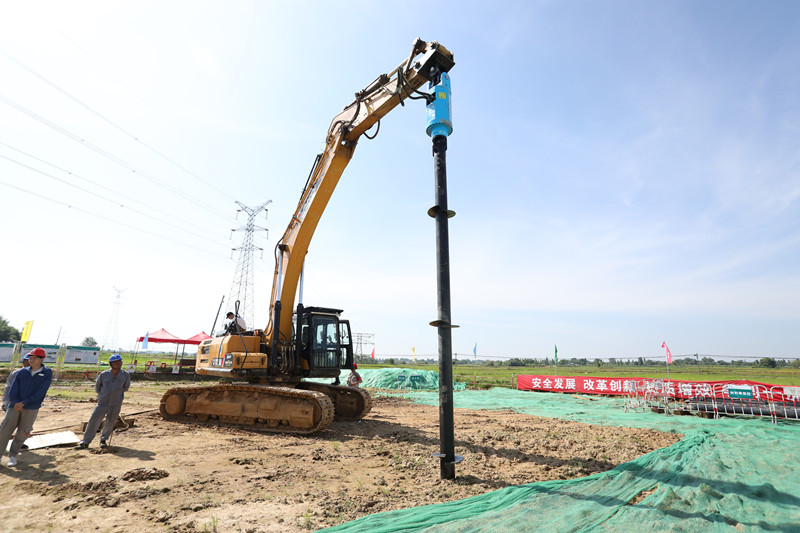

Product Applications● Structural support (compression or tension) for both permanent and temporary structures● Pole bases, Walkways, boardwalks, Telecommunication masts/platforms, Electrical equipment, pylons and poles● Underpin existing foundations, Temporary/permanent seating (stands), Buildings/modular buildings（mobile houses）● Rail structures (signalling, platforms, overhead line equipment), Highways structures (signage)● Retaining walls, flood defences, sea walls, bulkheads, Slope stabilization● Wind turbines, Solar farms, Fencing, Utility and pipeline tie downs● Concrete slab lifting and stabilization, concrete-less foundationsA helical pile informatization installation system with 50000Nm can be used in nearly any situation and where driven or cast in place piles are currently used.Product Feature
● Adjustable brackets have a certain height adjustability and is more flexible to use
● Adjustable brackets have the same or greater flexural strength as the pile body
● Galvanized steel products meet the structural bearing capacity after 75 years of corrosion
● Adjustable bracket is convenient for later adjustment, and the bearing capacity of the pile foundation can be changed by adjusting the height
